Blueair - Air Intelligence Module for Pro Series

Blueair - Air Intelligence Module for Pro Series

Regular price
$119.99
Sale price
$109.99

Info: Blueair AIM

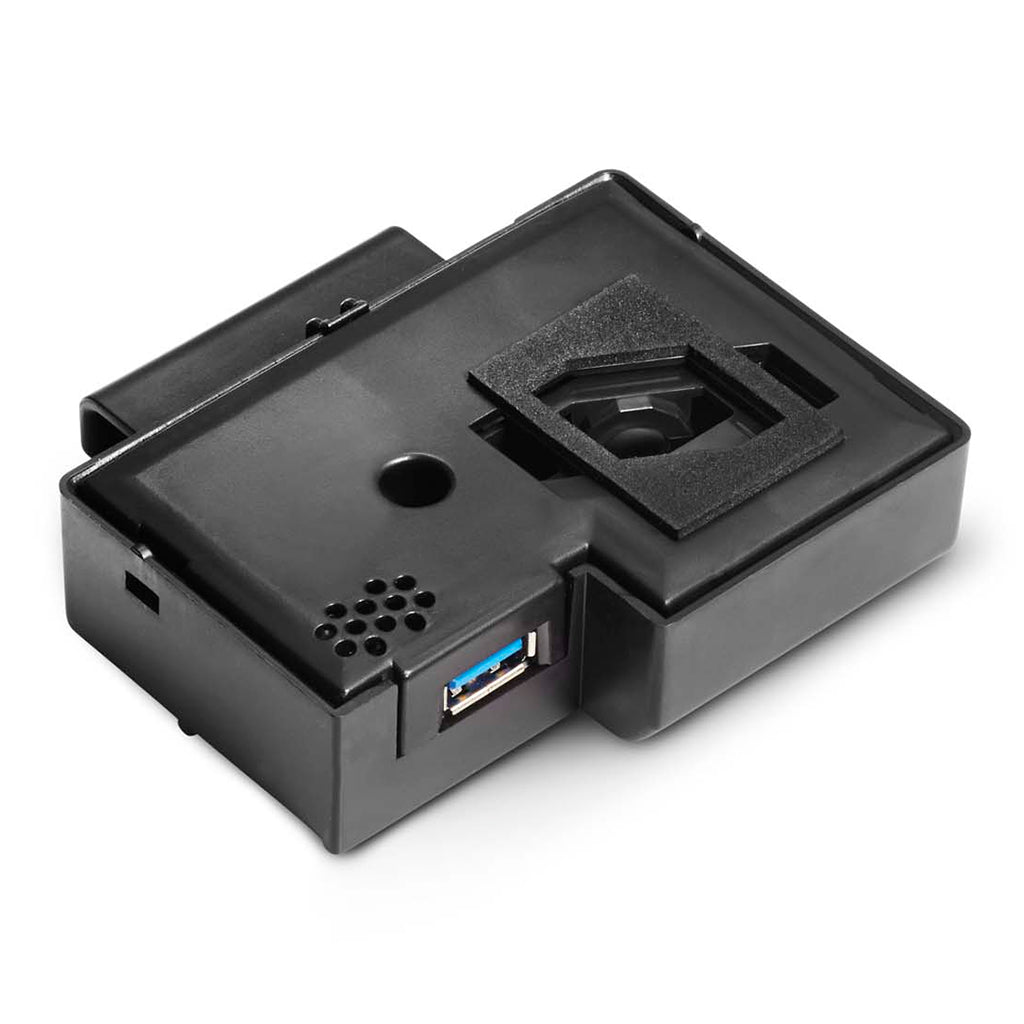

The Blueair Air Intelligence Module is an add-on option for the Blueair Pro Series (the Pro M, Pro L, and Pro XL). The Blueair AIM continuously monitors the quality of incoming air surrounding the unit with two state-of-the-art sensors for both particles and gases. S&H included in Canada.

Info: Blueair AIM

The Blueair Air Intelligence Module is an add-on option for the Blueair Pro Series (the Pro M, Pro L, and Pro XL). The Blueair AIM continuously monitors the quality of incoming air surrounding the unit with two state-of-the-art sensors for both particles and gases. S&H included in Canada.

Product Notes:

Blueair's Air Intelligence Module displays the results of its readings at the top of the air purifier right by where you turn it on so you can get an indication of what the filters are sparing you from.

The Air Intelligence Module (AIM) can also be used to run your Pro purifier on automatic mode, which will automatically adjust the speed settings between low, medium, or high depending on how high the pollution levels of the ambient air are, saving power and energy costs.

Diagram of sensors for Air Intelligence Module for Blueair Pro purifiers

Installation Instructions:

1) Pull out the green dummy / place-holding cover sitting in the module holder.
2) Insert the Air Intelligence Module into the module holder.
3) Insert the filter pack and re-attach the intake door.

Maintenance:

1) Remove the module from the unit.
2) Use a vacuum cleaner to gently clean the intake in front of the gas sensor.
3) Use a damp cotton swab to clean the dust sensor lens. After cleaning the dirt off the lens, use a dry cotton swab to wipe the lens. Do not use alcohol to clean the lens.
4) Re-insert the module.

Suggested Usage:

Closeup of a Blueair Pro purifier display with readings from the Air Intelligence Module

How to control the Air Intelligence Module and interpret its display once it is installed, using the main + and - buttons on the top of the Pro purifier.

Turn on your Blueair air purifier by touching the PLUS button on the unit. A blue bar will appear between the buttons.

Above the bar, two bar columns show the levels of air-suspended particles (PM2.5) and gaseous contaminants (GAS). One bar (green) represents a low particle or gas level.

Three bars (green, yellow and red) represent a high level of particles or gas, indicating the need to increase the operating speed, or to set the unit in automatic mode.

Turn the air purifier off by pressing the MINUS button when the unit is in first speed.

For automatic mode, touch the PLUS button when the unit is running on speed 3. The word AUTO will appear, and the two air quality sensors will adjust the speed according to the contaminant levels.

To return to manual operation, touch the MINUS button.

When filter replacement is required, a red replacement filter light will appear.

UPC / Barcode: 689122002576
